Industrial Ethernet PoE Switch's Product Description:

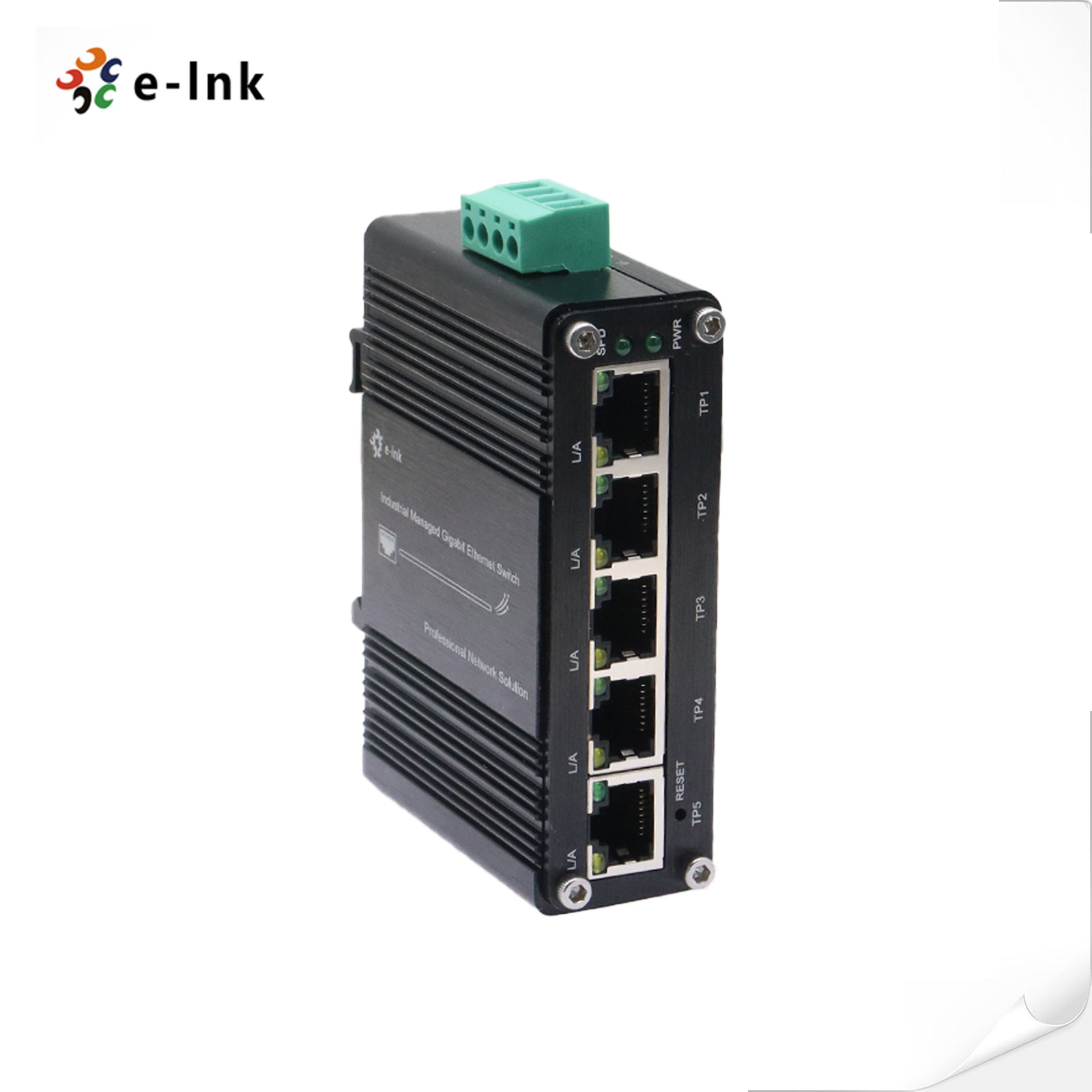

LNK-IMC005GM is a Mini Industrial Managed 5-Port 10/100/1000T Gigabit Ethernet Switch with 12~48V DC wide range power input. This Industrial Ethernet PoE Switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, this Industrial Ethernet PoE Switch could match a variety of harsh environment. This Industrial Ethernet PoE Switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. This Industrial Ethernet PoE Switch is a good choice for an economical solution for industrial Ethernet connections.
Industrial Ethernet PoE Switch's Features:
► 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
► 12~48V DC wide range power input
► Supports 802.3x Flow control
► Supports WEB Management
► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail and Wall-mount installation
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
► -40°C to 80°C (-40°F to 176°F) operating temperature
Industrial Ethernet PoE Switch's Technical Parameters:
| Standards: | IEEE 802.3 Ethernet |
| | IEEE 802.3u Fast Ethernet |
| | IEEE 802.3ab Gigabit Ethernet |
| | IEEE 802.3x Full-Duplex Flow Control |
| | IEEE 802.3az Energy Efficient Ethernet (EEE) |
| | IEEE 802.3af/at Optional |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| | 148,800pps (100Mbps) |
| | 1,488,000pps (1000Mbps) |
| Packet Buffer: | 1Mbits |
| Packet Length: | 10Kbytes |
| MAC Address Table: | 8K |
| Switch Fabric: | 10Gbps/non-blocking |
| Exchange Property | Backplane bandwidth: 10Gbps;
Packet forwarding rate: 14.88Mpps |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Power Consumption: | <6W |

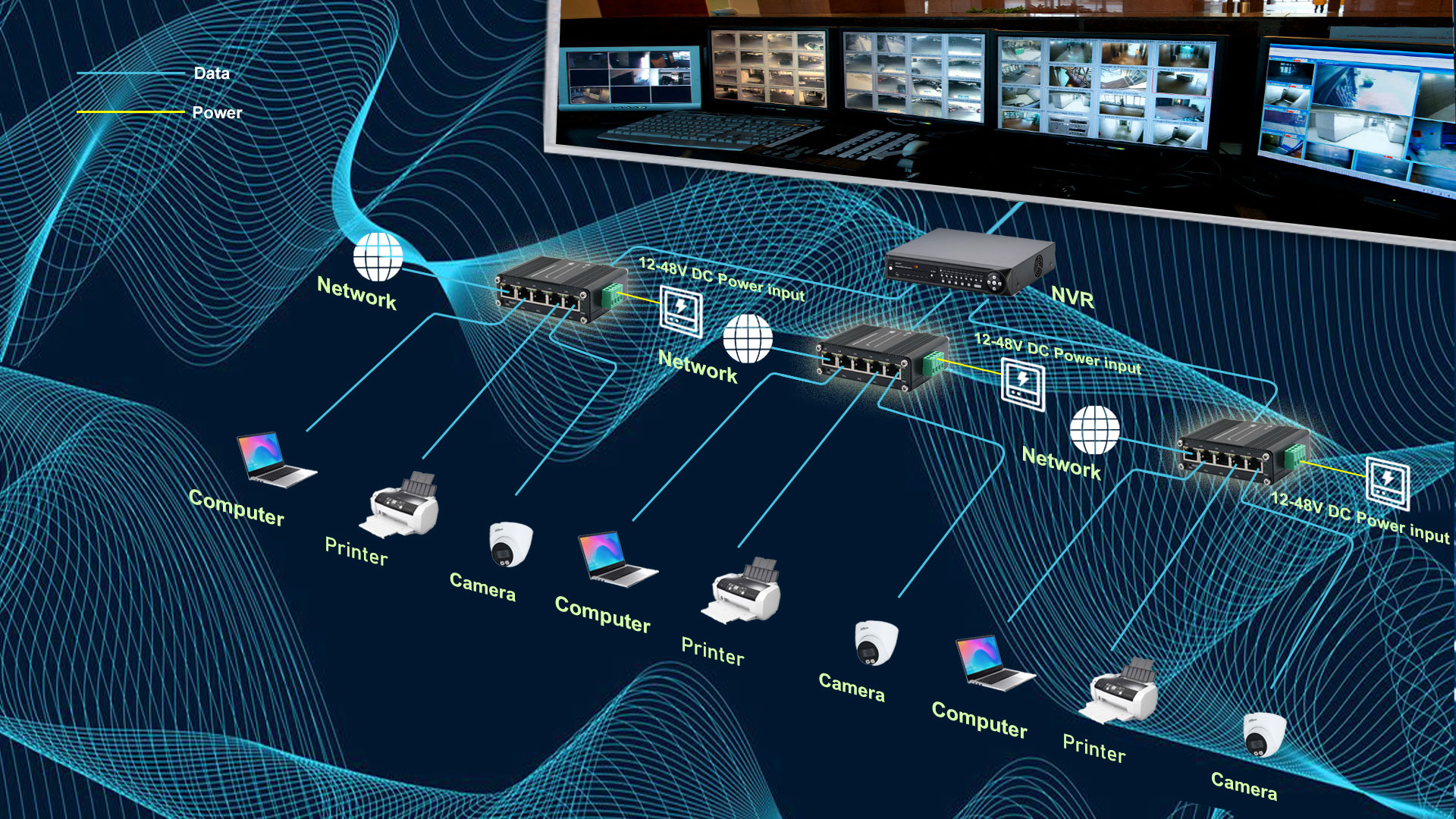

Industrial Ethernet PoE Switch's Applications:
Industrial Ethernet PoE Switch's Support and Services:
Industrial Ethernet PoE Switch technical support and services include:
- 24/7 online technical support
- Free installation services
- Onsite technical support
- Regular system updates and upgrades
- Training and education
Industrial Ethernet PoE Switch's Packing and Shipping:
Industrial Ethernet PoE Switch is packaged for shipping in a strong, corrugated box designed to ensure safe transport and handling. The interior is filled with protective foam inserts to help cushion the product against shock and vibration, while the exterior of the box is clearly labeled with product and shipping information.
Industrial Ethernet PoE Switch's Ordering Information:
| Model | Description |
| LNK-IMC005GM | Mini Industrial Managed 5-Port 10/100/1000T Gigabit Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately
► Recommend MeanWell MDR-20-24 |
