Din Rail Ethernet POE Switch 8 Ports 10 100Base-T 2 Ports 100BASE-FX Fiber Ethernet Switch

Name: Din Rail Ethernet POE Switch 8 Ports 10 100BaseT 2 Ports 100BASEFX Fiber Ethernet Switch
Brand: E-link
Price: 1 USD

China Din Rail Ethernet POE Switch 8 Ports 10 100Base-T 2 Ports 100BASE-FX Fiber Ethernet Switch wholesale

Brand Name : E-link

Model Number : LNK-IMC208

Certification : CE,FCC,RoHs

Place of Origin : China

MOQ : 1 pcs

Price : Negotiate

Payment Terms : Western Union, L/C, T/T, MoneyGram

Supply Ability : 2000 pcs/per month

Delivery Time : 7 working days

Packaging Details : Industrial Ethernet Switch Standard Export Package

Keywords : Industrial Ethernet Switch 8 port

Input Power : 12~58VDC Redundant Power

Ethernet Port : 8 ports 10/100BASE-T RJ45

Fiber Port : 2 ports 100Base-FX SC

Casing : Aluminum Case

Operating Temperature : -40°C to 80°C

Contact Now

Din Rail Industrial 8 Ports 10 100Base-T + 2 Ports 100BASE-FX Fiber Ethernet Switch
Industrial Fiber Ethernet Switch Advantages

► SFP, SC, FC, ST Optional

► Supports 802.3x Flow control

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Redundant Power Inputs
8 Ports Ethernet Switch Technical Indexes

Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3x Flow Control
Forward & Filtering Rate:	14,880pps (10Mbps)
Forward & Filtering Rate:	148,800pps (100Mbps)
Packet Buffer Memory:	512K bits
Processing Type:	Store-and-Forward
Address Table Size:	1024 MAC Addresses
Input Power:	12~58VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	5W Max.
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power1, Power2 Status
Ethernet (Per Port):	Link/Activity
Fiber:	FX1, FX2
Dimensions (WxDxH):	150 x 110 x50 mm
Weight:	0.6Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount

Unmanaged Network Switch Overview

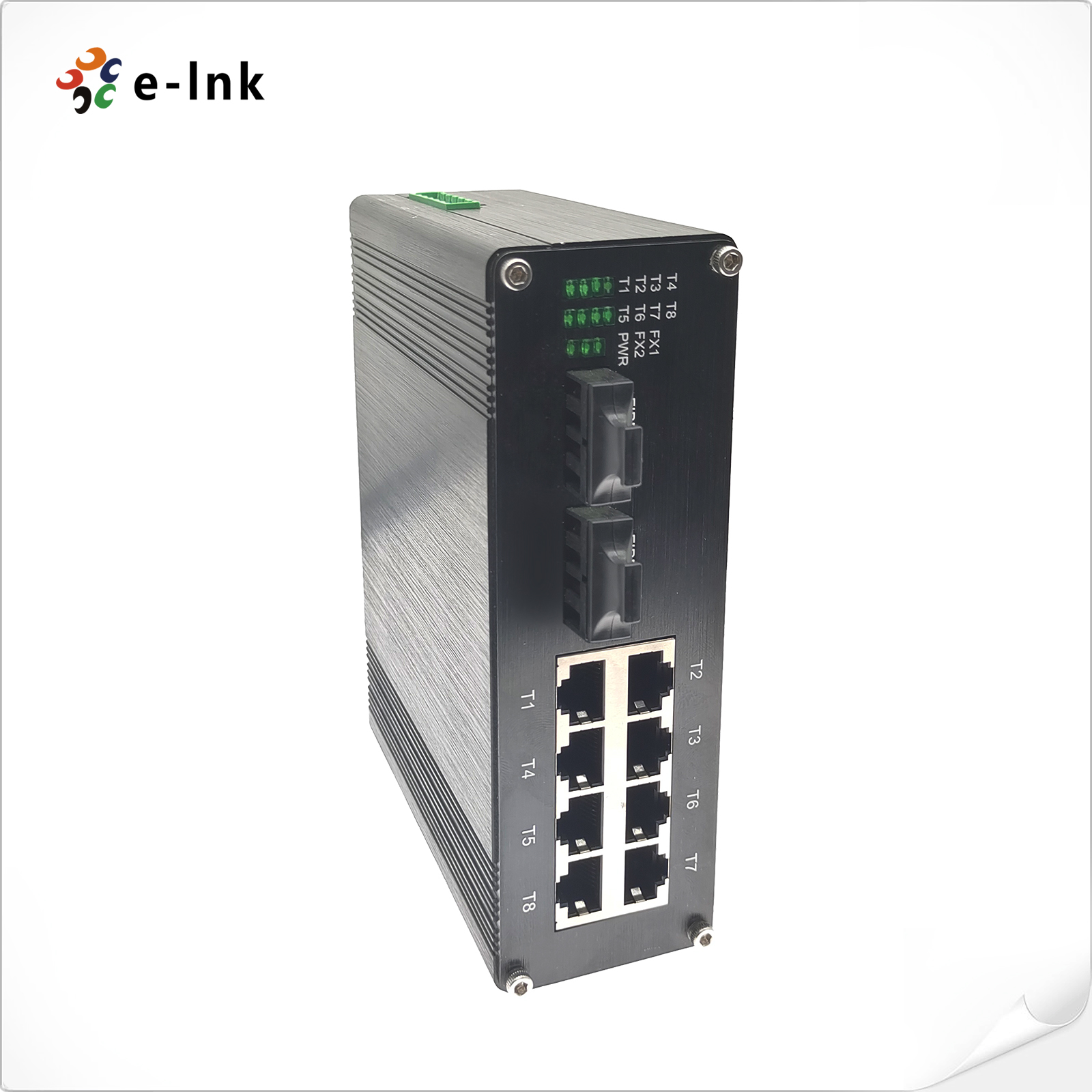

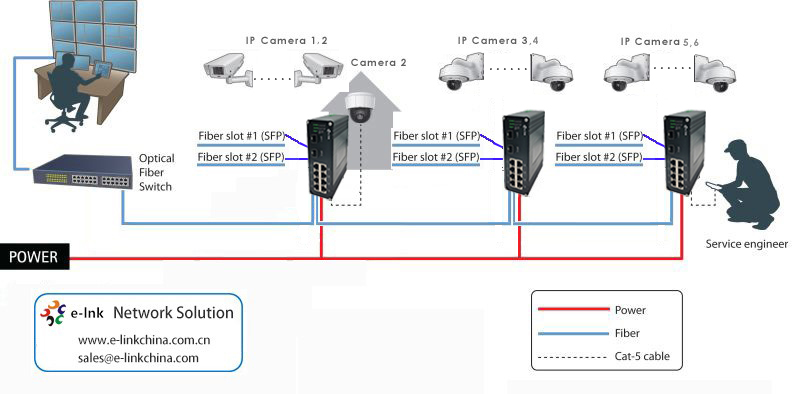

LNK-IMC208 Series is an 8 ports 10/100Base-TX + 8 port 100Base-FX Hardened Ethernet switch. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Din Rail Ethernet POE Switch 8 Ports 10 100Base-T 2 Ports 100BASE-FX Fiber Ethernet Switch

Din Rail Ethernet POE Switch 8 Ports 10 100Base-T 2 Ports 100BASE-FX Fiber Ethernet Switch
Copper to Fiber Ethernet Switch Ordering Information

Model	Description
LNK-IMC208	Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Multimode, Dual Fiber, SC, 2KM
LNK-IMC208-20	Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Dual Fiber, SC, 20KM
LNK-IMC208S-20	Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM
LNK-IMC208F-20	Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, FC, 20KM
LNK-IMC208-SFP	Industrial 8-port 10/100BASE-T + 2-port 100BASE SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
