Aluminum Case Industrial PoE Switch 8 Port Gigabit 802.3at RJ45 + 6 Port 1000X SFP Fiber

Name: Aluminum Case Industrial PoE Switch 8 Port Gigabit 8023at RJ45 6 Port 1000X SFP Fiber
Brand: E-link
Price: 1 USD

China Aluminum Case Industrial PoE Switch 8 Port Gigabit 802.3at RJ45 + 6 Port 1000X SFP Fiber wholesale

Brand Name : E-link

Model Number : LNK-IMC608GP-SFP

Certification : CE,FCC,RoHs

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : Western Union, L/C, T/T, MoneyGram, Paypal

Supply Ability : 20000pcs/per month

Delivery Time : 7 Working days

Packaging Details : PoE Switch Standard Export Package

Keywords : Ethernet PoE switch

Input Power : 48~57VDC

Optical Port : 1-port gigabit SC

Connector : 8 x RJ45

Power Pin : 4/5(+), 7/8(-)

Casing : IP40 Aluminum Case

Contact Now

PoE Switch Industrial 8-Port Gigabit 802.3at RJ45 + 6-Port 1000X SFP Fiber

Power Over Ethernet Switch Advantages

► IEEE802.3af/at compliant

► Supports 802.3x Flow control

► 9K Bytes Jumbo Frame

► Redundant Power Inputs

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail installation

Technical Indexes

Connector:	8 x RJ45
Optical Port:	6 x 1000Base-X SFP
PoE Standard:	IEEE 802.3at Power over Ethernet Plus
PoE Standard:	IEEE 802.3af Power over Ethernet
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 240-watt PoE budget
Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	8W Max.(PoE in Use<240W)
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power Status
Ethernet(Per Port):	Link/Activity
PoE (Optional)	PoE Status
Fiber:	Gigabit SFP Port: F1~F6

Overview

LNK-IMC608GP-SFP Series is 8-port 10/100/1000Base-T 802.3at PoE + 6-port 1000Base-X SFP hardened Ethernet switch. The Switch has 8 TP ports and 6 fiber ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

Aluminum Case Industrial PoE Switch 8 Port Gigabit 802.3at RJ45 + 6 Port 1000X SFP Fiber

Ordering Information

Model	Description
LNK-IMC608GP-SFP	Industrial 8-Port 10/100/1000T 802.3at PoE + 6-Port 1000X SFP Ethernet Switch
SFP Options	SFP option. Please select your SFP on our SFP Options Page SFP module is to be purchased separately.
Power Options	► DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.

Product Tags:

Industrial PoE Switch Aluminum Case

Industrial PoE Switch IP40

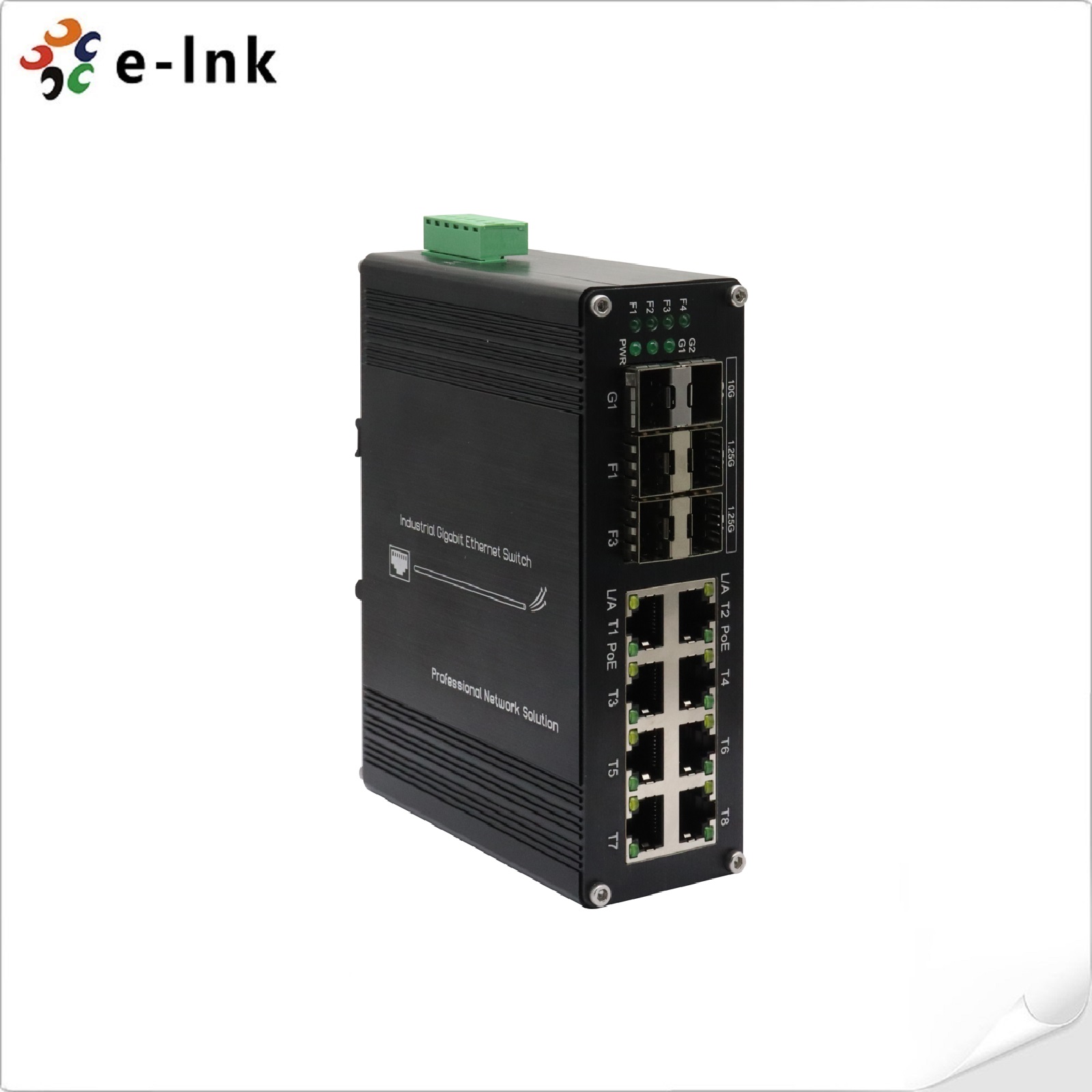

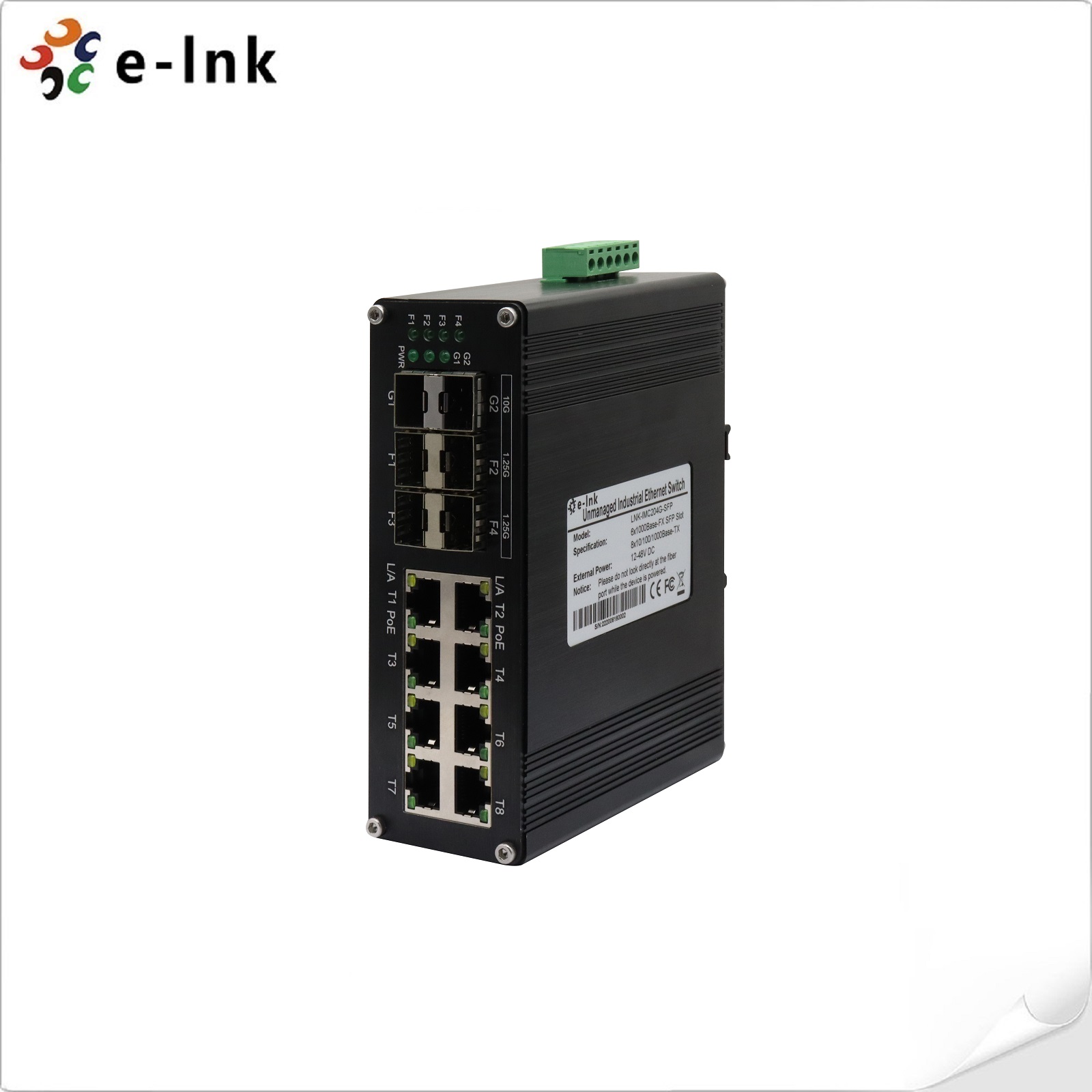

Aluminum Case Industrial PoE Switch 8 Port Gigabit 802.3at RJ45 + 6 Port 1000X SFP Fiber Images
