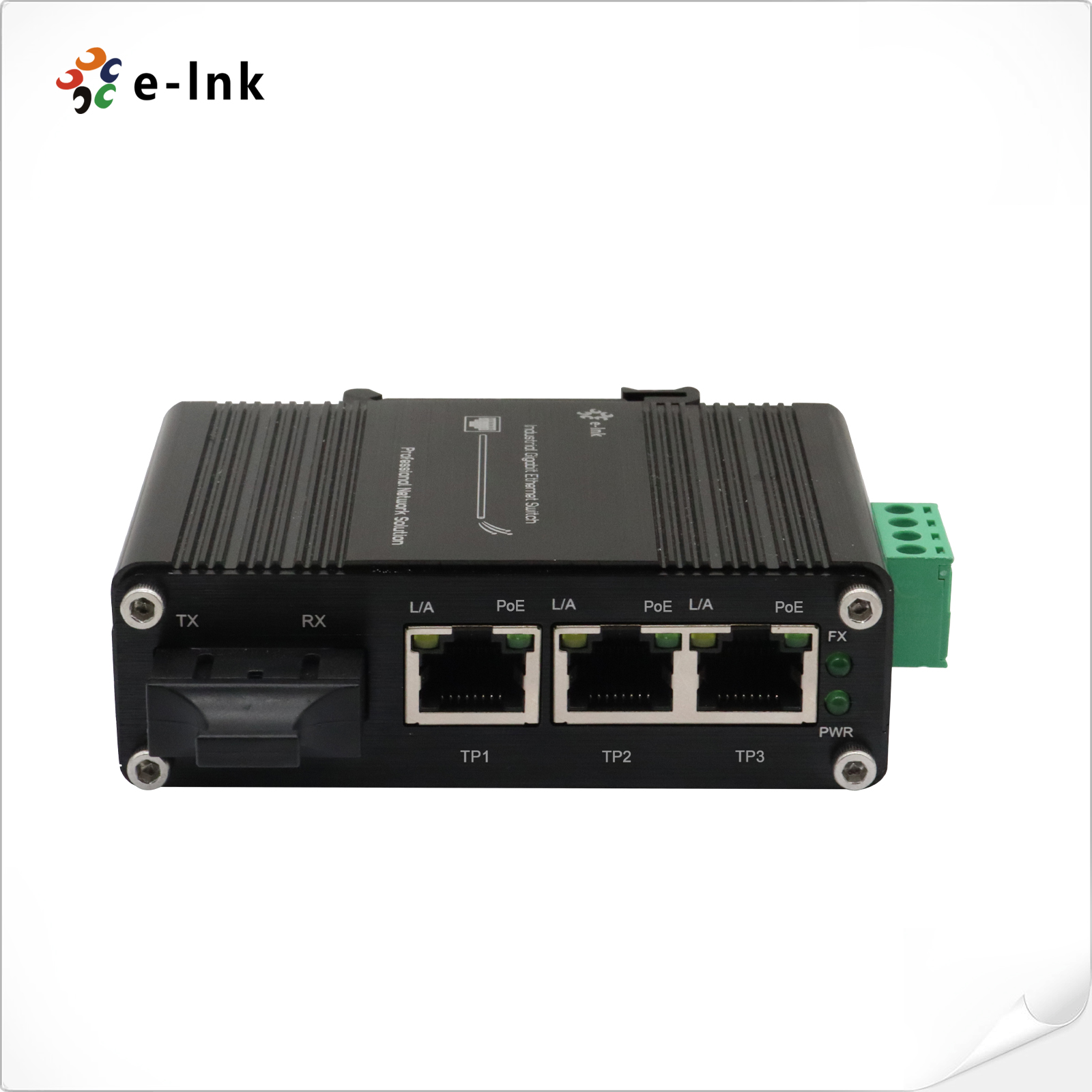

Mini Industrial PoE Switch 3 Port 10/100/1000T 802.3at + 1 Port 100/1000X SC Switch

Name: Mini Industrial PoE Switch 3 Port 101001000T 8023at 1 Port 1001000X SC Switch
Brand: E-link
Price: 1 USD

China Mini Industrial PoE Switch 3 Port 10/100/1000T 802.3at + 1 Port 100/1000X SC Switch wholesale

Brand Name : E-link

Model Number : LNK-IMC103GP

Certification : CE,FCC,RoHs

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : Western Union, L/C, T/T, MoneyGram, Paypal

Supply Ability : 20000pcs/per month

Delivery Time : 7 Working days

Packaging Details : PoE Switch Standard Export Package

Keywords : Industrial ethernet switch poe

Connector : 3-port RJ45 802.3at PoE

Optical Port : 1-port gigabit SC

Input Power : 12~48VDC

Power Pin : 4/5(+), 7/8(-)

Mounting Options : DIN-Rail / Wall-mount

Contact Now

PoE Switch Mini Industrial 3-Port 10/100/1000T 802.3at + 1-Port 100/1000X SC Switch

Power Over Ethernet Switch Advantages

► 1 1000Base-X SC Port

► 3 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-3)

► 12~48VDC wide range power input with power booster function

► Up to 90W PoE budget (48VDC), 90W PoE budget (24VDC), 60W PoE budget (12VDC)

► Supports Full/Half-duplex, Auto-negotiation

Technical Indexes

Interface
Connector:	3 x RJ45 with 802.3at PoE+ injector function (Ports 1 to 3)
Optical Port:	1 x SC 1000Base-X
PoE (Power over Ethernet)
Standard:	IEEE 802.3at Power over Ethernet Plus
Standard:	IEEE 802.3af Power over Ethernet
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 90-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
Electrical and Mechanical
Input Power:	12~48VDC, 2-pin terminal block
Power Consumption:	<95W (Non-PoE<6W)
LED Indicators:
PWR:	Power Status
L/A:	Ethernet LINK Status
FX:	Fiber LINK Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm

Overview

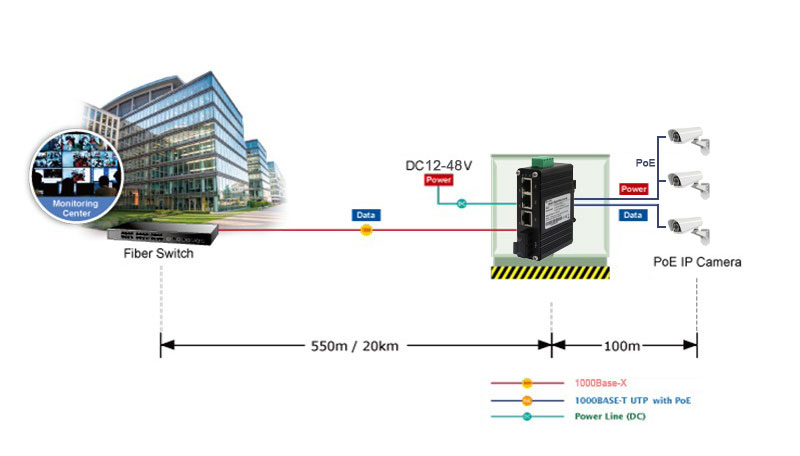

LNK-IMC103GP Series is a Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster. This unmanaged industrial solar power PoE switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.

Mini Industrial PoE Switch 3 Port 10/100/1000T 802.3at + 1 Port 100/1000X SC Switch

Ordering Information

Model	Description
LNK-IMC103GP	Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Multimode, Dual Fiber, 850nm, 550m
LNK-IMC103GP-20	Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Single Mode, Dual Fiber, 1310nm, 20km
LNK-IMC103GPS-20A	Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Single Mode, Single Fiber, 1310nm TX/1550nm RX, 20km
LNK-IMC103GPS-20B	Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Single Mode, Single Fiber, 1550nm TX/1310nm RX, 20km
Power Options	► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
