Industrial PoE Ethernet Switch 4-port 10/100/1000T 802.3at PoE + 2-port 1000X
Model: LNK-GY204GP-SFP Series
Overview
LNK-GY204GP is a 4 ports 10/100/1000Base-TX + 2 port 1000Base-FX Hardened PoE switch. The Switch provides 4 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 1000Base-FX supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Features
► 4 10/100/1000Base-TX + 2 1000Base-FX
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports IEEE 802.3at PoE+ (30W per port)
► SFP, SC, FC, ST Optional
► Supports 802.3x Flow control
► 1M bits frame buffer memory
► 9K Bytes Jumbo Frame
► Redundant Power Inputs
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
Technical Indexes
| Ethernet |
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX |
| IEEE802.3ab 1000BASE-T |
| IEEE802.3z 1000BASE-X |
| IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| 1,488,000pps (1000Mbps) |
| Packet Buffer Memory: | 1M bits |
| Processing Type: | Store-and-Forward |
| Max Packet Length: | 9K Bytes |
| Address Table Size: | 2048 MAC Addresses |
| Interface |
| Connector: | 4 x RJ45 |
| Optical Port: | 2 x 1000Base-FX (SFP, SC, FC, ST Optional) |
| Environmental |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical |
| Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 132W Max. (PoE in use) |
| 5W Max. (PoE not in use) |
| Standard: | IEEE802.3af/at |
| PoE: |
| Port: | RJ45 Port 1 ~ Port 4 |
| Max. Power per Port: | 30W Max per port (Alternative B Mode) |
| Protection: |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: |
| Power: | Power1, Power2 Status |
| PoE: | Per Port Status |
| Ethernet (Per Port): | Link/Activity |
| SFP: | FX1, FX2 |

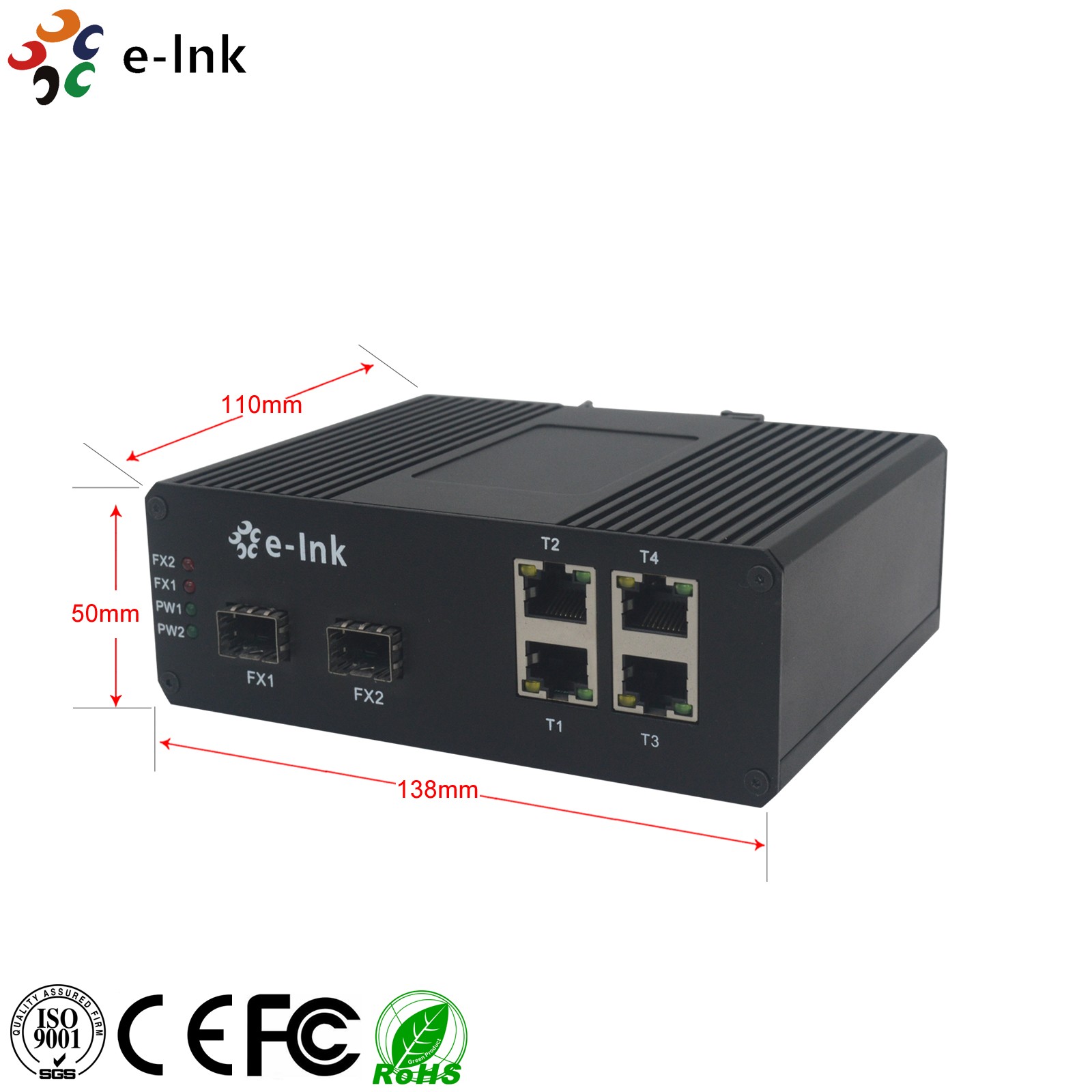

| Dimensions (WxDxH): | 50 x 108 x 139 mm |
| Weight: | 0.6Kg |
| Casing: | Metal Case |
| Mounting Options: | DIN-Rail / Wall-mount |
Ordering Information
| Model | Description |
| LNK-GY204GP-SFP | Industrial 4-port 10/100/1000BASE-T (4-port PoE+) + 1-port 1000BASE SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | 120W/2.5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
