5 Fast Port Din Rail Mount Ethernet Switch Unmanaged , Industrial PoE Switch

Name: 5 Fast Port Din Rail Mount Ethernet Switch Unmanaged Industrial PoE Switch
Brand: E-link
Price: 1 USD

China 5 Fast Port Din Rail Mount Ethernet Switch Unmanaged , Industrial PoE Switch wholesale

Brand Name : E-link

Model Number : LNK-GY005P Series

Certification : CE/FCC/Rohs

Place of Origin : Guangdong

MOQ : 1 pc

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 10000pcs/Month

Delivery Time : 5-8 days

Packaging Details : 1 pcs in 1 carton box

MAC Table : 2K

Packet Buffer : 1M

Switching Capacity : 1Gbps

Mounting : DIN-Rail

Operating Temperature : -45 to 80°C (-49 to 180°F)

Warranty : 5 years

Contact Now

5 Fast Ethernet Port Unmanaged Din-Rail Industrial PoE Switch

Model: LNK-GY005P Series

5 Fast Port Din Rail Mount Ethernet Switch Unmanaged , Industrial PoE Switch

Overview

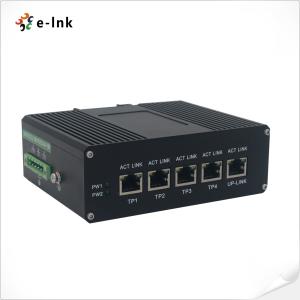

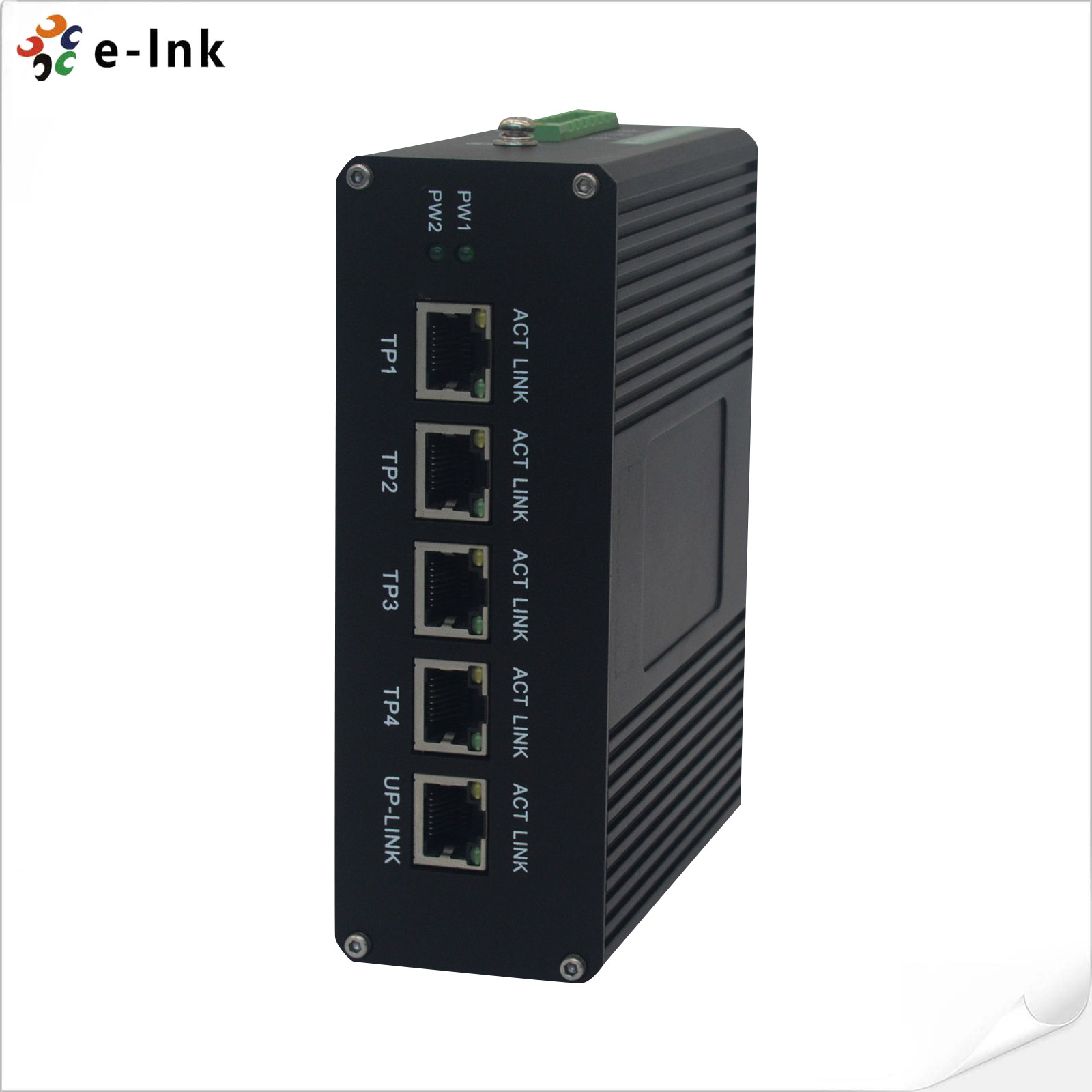

LNK-GY005P is a 5 ports 10/100Base-TX Hardened Ethernet PoE switch. The Switch provides 4 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

Features

4 10/100Base-TX with PoE+
Support IEEE802.3at PoE(30W per port)
RJ45 Port Supports 10/100Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
Supports 802.3x Flow control
Supports 9K Bytes Jumbo Frame
1M bits frame buffer memory
Supports DIN-Rail and Wall-mount installation
Redundant Power Inputs
-40°C to 80°C (-40°F to 176°F) operating temperature
5-Year Warranty

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Forward & Filtering Rate:	14,880pps (10Mbps)
Forward & Filtering Rate:	148,800pps (100Mbps)
Switch Fabric:	1Gbps
Cabling	10Base-T: Cat5 or above
Cabling	100Base-TX: Cat5 or above
Maximum Distance	Cat5 UTP up to 100m
Interface
Connector:	5 x RJ45 (P1~P4: PoE)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	48~57VDC , Redundant Power (6-pin Terminal Block)
Power Consumption:	132W Max. (PoE in use)
Power Consumption:	5W Max. (PoE not in use)
Standard:	IEEE802.3af/at
PoE:
Port:	RJ45 Port 1 ~ Port 4
Max. Power per Port:	30W Max per port (Alternative B Mode)
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power1, Power2 Status
PoE:	Per Port Status
Ethernet(Per Port):	Link/Activity
Dimensions (WxDxH):	50 x 108 x 139 mm
Weight:	0.6Kg
Casing:	Metal Case
Mounting Options:	DIN-Rail / Wall-mount

Ordering Information

Model	Description
LNK-GY005P	Industrial 5-port 10/100BASE-T (4-port PoE+) Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options	120W/2.5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
