Industrial Power Over Ethernet Splitter 20W/24VDC Output Support DIN Rail Mounting

Name: Industrial Power Over Ethernet Splitter 20W24VDC Output Support DIN Rail Mounting
Brand: E-link
Price: 40 USD

China Industrial Power Over Ethernet Splitter 20W/24VDC Output Support DIN Rail Mounting wholesale

Brand Name : E-link

Model Number : LNK-SPT24V

Certification : ISO

Place of Origin : China

MOQ : 1 pc

Price : US$40-US$50

Payment Terms : T/T, Western Union, MoneyGram or PayPal

Supply Ability : 1000 pcs per month

Delivery Time : 5-7 working days

Packaging Details : safe carton

Forward Filter Rate : 1,488,000pps (1000Mbps)

Cabling : 1000Base-T: Cat5 or above

Maximum Distance : Cat5 UTP up to 100m

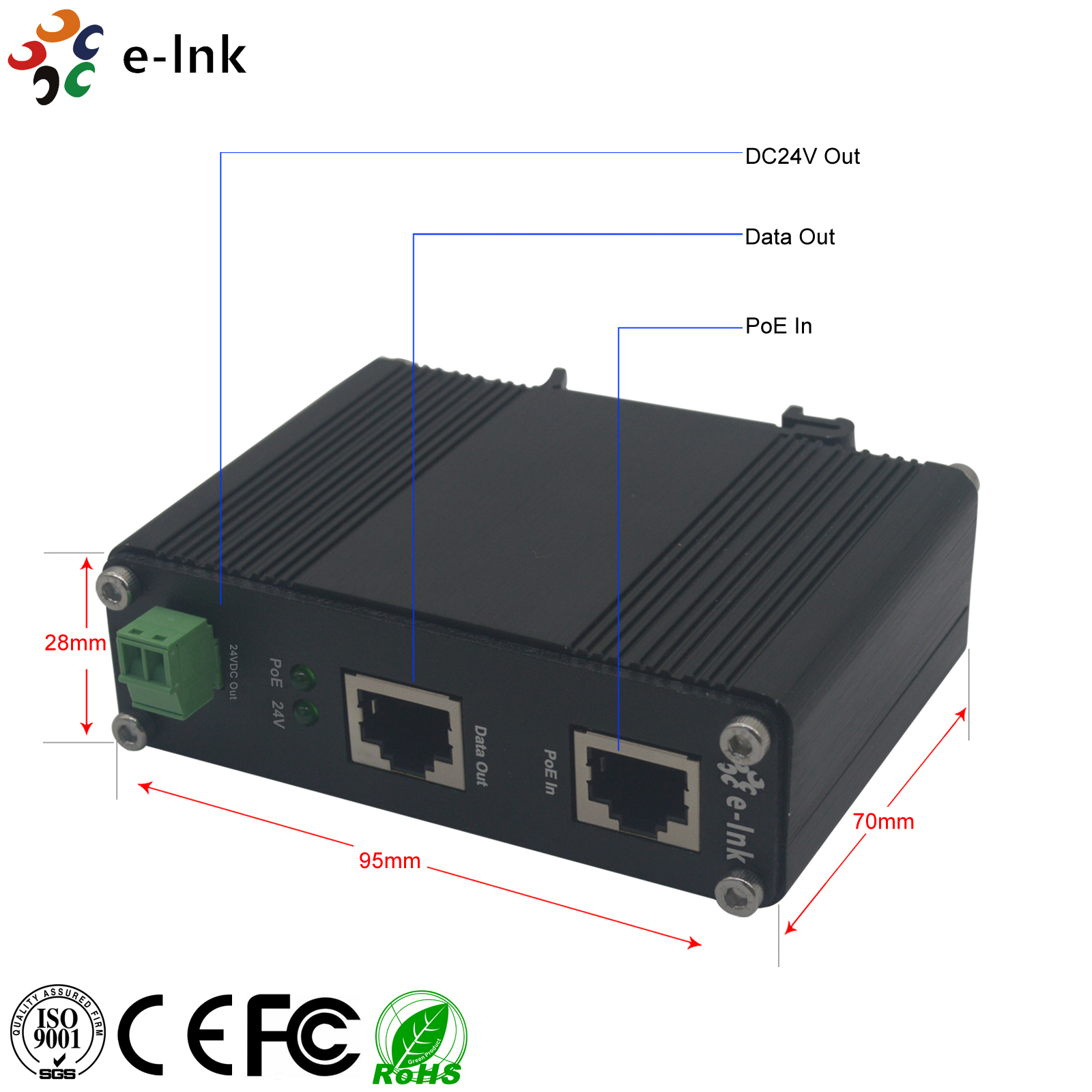

Connector : 2x RJ45

Output Power : 20W/24VDC (Terminal Block)

Power Consumption : 25W Max

Dimensions (WxDxH) : 95 x 70 x 30 mm

Mounting Options : DIN-Rail / Wall-mount

Contact Now

Industrial PoE Splitter 20W/24VDC output Support DIN-Rail mounting and Wall mounting

Model: LNK-SPT24V Series

Overview

LNK-SPT24V is the ideal IEEE 802.3af/at of Power over Ethernet device, that splitter use for the PoE PSE DC power into 24V DC power output. LNK-SPT24V operates with power source equipment that is compatible with the IEEE 802.3af/at standard. It provides more flexibility for 24VDC electrical equipment installed capacity, no complicated wiring and AC power sources.

Features

1 RJ45 PoE PSE Input Port(Data + Power) + 1 RJ45
Ethernet Data Output Port(Data only).
Support IEEE802.3at Power over Ethernet(PoE+)
Power Sourcing Equipment
Support 10/100/1000Base-TX
Support DIN-Rail & Wall-mount installation.
Extensive LED indicatiors for PoE diagnostics
Environmentally Hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Warranty

5-Year Warranty

Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
Standards:	IEEE802.3at Power over Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	1000Base-T: Cat5 or above
Maximum Distance:	Cat5 UTP up to 100m
Connector:	2x RJ45
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Output Power:	20W/5VDC (Terminal Block)
Power Consumption:	25W Max.
LED Indicators:
PoE In:	PoE PSE Power In
5V:	DC24V Output
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500W
ESD: 4KV/8KV
