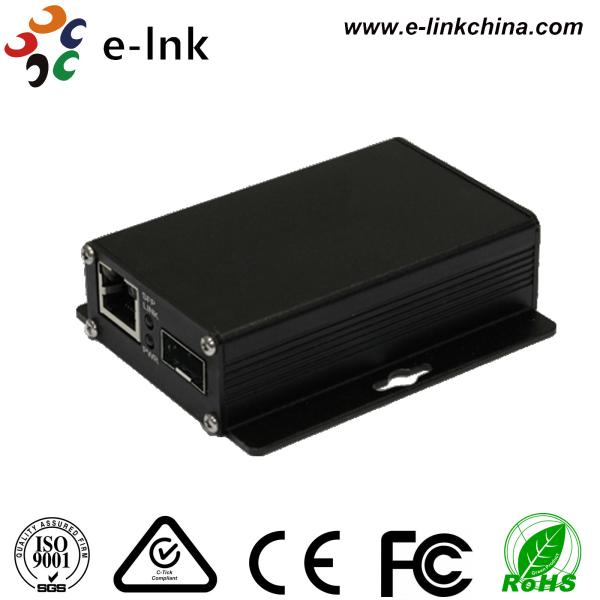

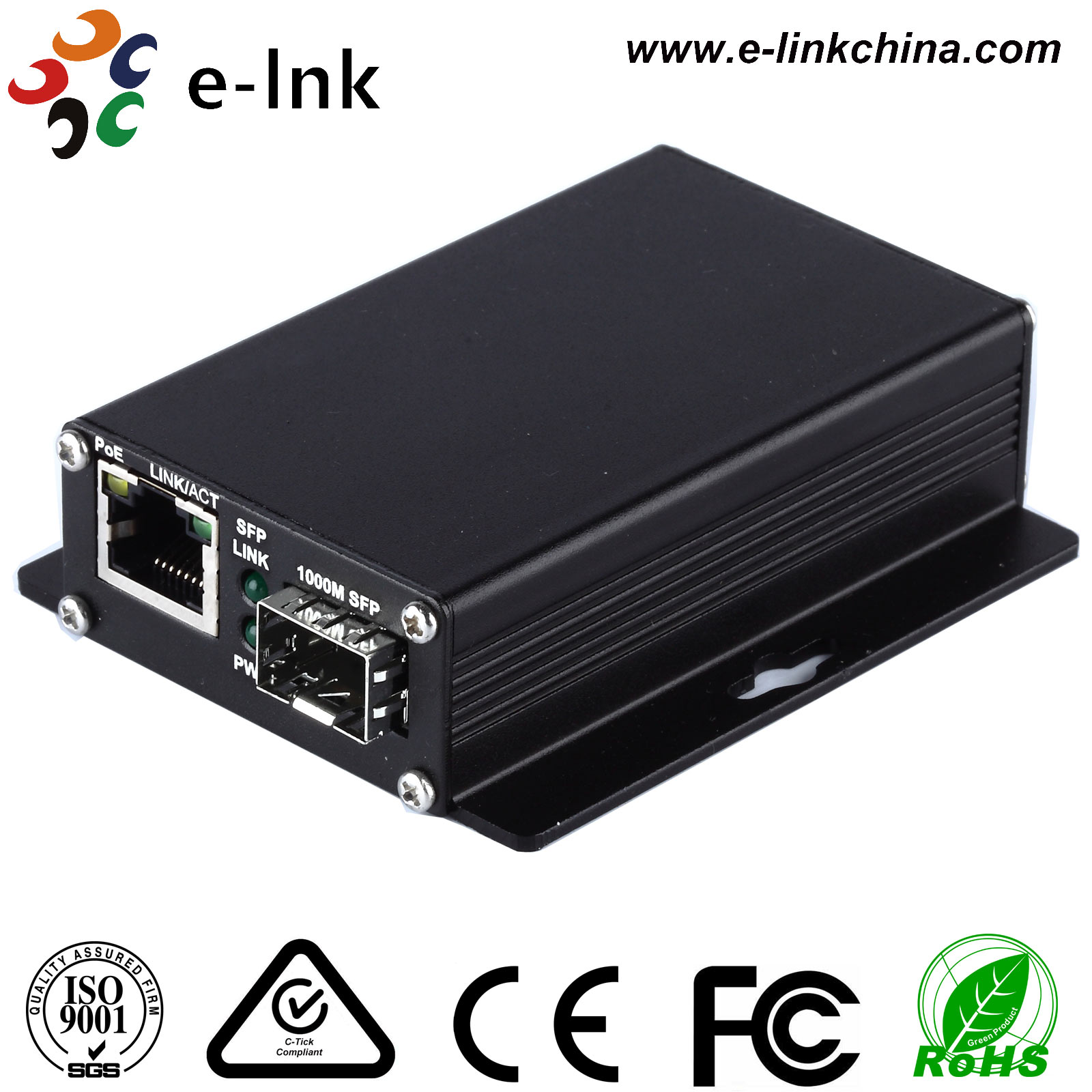

Entry Level Fiber Optic Cable Ethernet Converter 10 / 100/1000 Base -TX To 1000 Base -FX

Name: Entry Level Fiber Optic Cable Ethernet Converter 10 1001000 Base TX To 1000 Base FX
Brand: E-link
Price: 1 USD

China Entry Level Fiber Optic Cable Ethernet Converter 10 / 100/1000 Base -TX To 1000 Base -FX wholesale

Brand Name : E-link

Model Number : LNK-AF3011-SFP Series

Certification : RoHS,CE,FCC

Place of Origin : China

MOQ : 1 pcs

Payment Terms : Western Union, MoneyGram, Western Union,Paypal

Supply Ability : 100000pcs

Delivery Time : 5

Processing Type : Store-and-Forward

Packet Buffer Memory : 1Mbit

Connector : 1 x RJ45

Optical Port : 1 x SFP 1000Base-X

Input Power : 12VDC, DC-Jack

Power Consumption : 12W 1A@12VDC

Weight : 0.2 Kg

Casing : Aluminum Case

Mounting Options : Desktop / Wall Mount

MTBF : > 200,000 hrs

Contact Now

Entry-level Industrial 10/100/1000Base-TX to 1000Base-FX SFP Ethernet Media Converter

Model: LNK-AF3011-SFP Series

Overview

LNK-AF3011P-SFP is a Entry-level industrial 10/100/1000Base-T to 1000Base-X media converter. The converter provides SFP ports to support the use of SFP (Small Form-factor Pluggable) transceiver module. User can chose different types of SFPs (1000M only). The converter supports 1 or 2 core Single-mode or Multi-mode fiber. The product operates at temperatures ranging from -10°C to 70°C (14°F to 158°F) and support wall-mount installed or desktop installed.

Features

· Converts 10/100/1000Base-TX to 1000Base-FX SFP

· Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

· Supports external 1000Base SFP

· 9K Bytes Jumbo Frame

· Supports Desktop and Wall-mount installation

· -10°C to 70°C (14°F to 158°F) operating temperature

Technical Indexes

Specifications
Standards	IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X
Processing Type	Store-and-Forward
Forward Filter Rate	14,880pps (10Mbps) 148,800pps (100Mbps) 1,488,000pps (1000Mbps)
Packet Buffer Memory	1Mbit
Max Packet Length	9K Bytes
Address Table Size	2048K MAC Addresses
Interface
Connector	1 x RJ45
Optical Port	1 x SFP 1000Base-X
Electrical and Mechanical
Input Power	12VDC, DC-Jack
Power Consumption	12W 1A@12VDC
LED Indicators
Power	Power Status
Ethernet (Per Port)	LINK/Activity
SFP	LINK
Dimensions (WxDxH)	83 x 70 x 23.6mm
Weight	0.2 Kg
Casing	Aluminum Case
Mounting Options	Desktop / Wall Mount
Environmental
Operating Temperature	-10°C to 70°C (14°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals	ISO9001, CE, FCC, RoHS EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024:2010 EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-AF3011-SFP	Entry-level Industrial 10/100/1000Base-TX to 1000Base-FX SFP Ethernet Media Converter

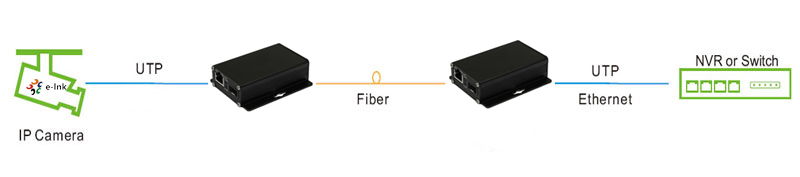

Typical Application

Entry Level Fiber Optic Cable Ethernet Converter 10 / 100/1000 Base -TX To 1000 Base -FX
