Multimode Gigabit Fiber Optic Ethernet Switch

Name: Multimode Gigabit Fiber Optic Ethernet Switch
Brand: E-link
Price: 1 USD

China Multimode Gigabit Fiber Optic Ethernet Switch wholesale

Brand Name : E-link

Model Number : LNK-FS800M

Certification : CE/FCC/Rohs

Place of Origin : Guangdong, China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5000pcs Per Month

Delivery Time : 4-6 days

Packaging Details : Standard export package

Optical Port : 8 x SFP 100Base-X

Uplink : 1x SFP + 1x RJ45 (Combo)

Ethernet Rate : 1 x 1000M RJ45

Management : Yes

Name : fiber optic hub switch

Hot Plug : Support

Contact Now

8 Ports 100M SFP managed Switch with Ethernet uplink Port

Model: LNK-FS800M

Overview

E-link LNK-FS800M is a nine ports managed 100M all optic fiber switch. It offers eight SFP fiber ports access and one Gigabit Combo port (1000M SFP port and 10/100/1000M adaptive RJ45 Ethernet interchange) uplink.

LNK-FS800M supports SFP modules hot plug, and supports to work with fiber switches, fiber converters and other devices witch fiber ports. It supports WEB managementas a managed switch; applies to security system, electric system, and traffic system requirements.

Features

Support maximum 8 SFP fiber ports and 1 GE Combo port (SFP fiber port/RJ45 port interchange)
Support SFP hot plug
Support each port full rate, full-duplex non-blocking forwarding
Support 8K MAC learning, 1Mbit storage and forward cache space, 4.6G back plane bandwidth
Supports to substitute central fiber converter, simplify network structure, lower network establishing cost, reduce device fault
All optic ports, strengthen the an-interference ability
Metal casing design, better for heat dissipation

Warranty: 1-Year Warranty

Technical Indexes

Parameter	Specification
Standard	IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1d Spanning Tree
Wavelength	850nm/1310nm/1550nm
Distance	1000M SFP multi-mode:220m fiber 62.5/125μm)/ 550m(fiber 50/125μm) Single-mode:10/20/40/60/80/100/120Km Cat5:100m
Port	8 SFP fiber ports: 100Mbps 1 Gigabit Combo port:1 Gbps, 1000M SFP&10/100/1000M RJ45
MAC	8K
Buffer memory space	1Mbit
Bit error rate	<1/1000000000
MTBF	100000 hours
Power	DC12V/2A
Power consumption	10W
Working temperature	-10~60℃
Storage temperature	-40~80℃
Humidity	5%~90% non-condensing
Dimension	28mm (H)×193mm(W)×119mm (D)

Product Tags:

fiber optic network switch

fiber optic gigabit switch

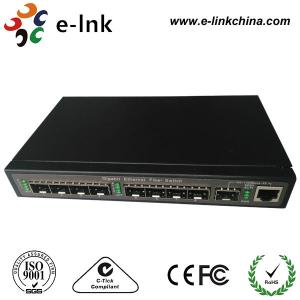

Multimode Gigabit Fiber Optic Ethernet Switch Images
